GRANULATOR MACHINE

YK-160  Swing Granulator
(Make Wet Powdery Material Into Granulates or Crush Block Dry Material

Main Application :
Widely used in pharmaceutical, chemical and foodstuff trades etc., It can make wet powdery material into granulates or crush block dry material, as well as carry out speedy granulation.

Working Principle :
The roller is swung repeatedly through mechanical driving, which makes the material extruded from sieve, further granulated or crushed or speedily pelletized.

Production                    : 5 – 30 kg/h
Granulator Diameter    : 0.8 – 5 mm
Motor Power                 : 0.37 kw
Drum Speed                  : 76 r/min
Drum Diameter             : Ø 60 mm
Overall Dimension        : 530x450x580 mm
Weight                            : 70 kg

Production                    : 200 – 300 kg/h
Granulator Diameter    : 0.8 – 5 mm
Motor Power                 : 3 kw
Drum Speed                  : 55 r/min
Drum Diameter             : Ø 160 mm
Overall Dimension        : 1000x800x1300 mm
Weight                            : 380 kg

Production                    : 200 – 500 kg/h
Granulator Diameter    : 0.8 – 5 mm
Motor Power                 : 5.5 kw
Drum Speed                  : 38 r/min
Drum Diameter             : Ø 250 mm
Overall Dimension        : 1050x890x1320 mm
Weight                            : 55 kg

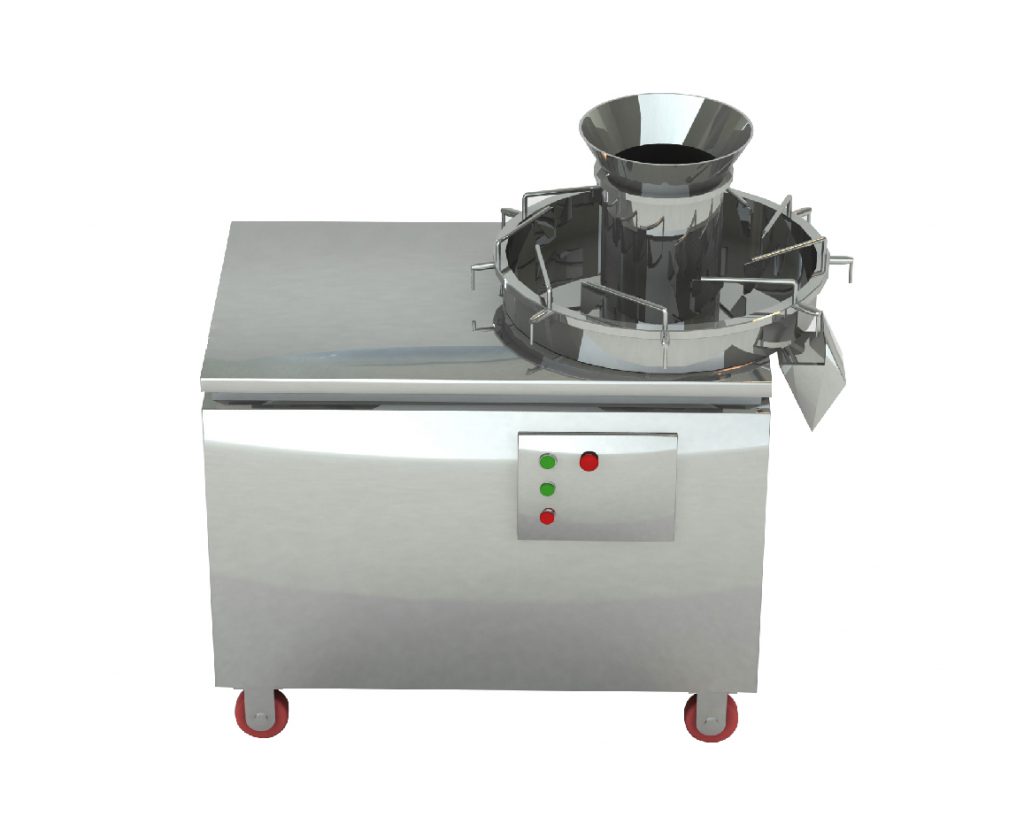

Model ZL 250 A Rotating Granulator
(For Material With High Vicosity)

Main Application :
This machine is the ideal equipment used in such trades as pharmaceutical, foodstuff, irruptive dosage chemical, solid beverage and so on, especially for the material with higeh viscosity. It can make the required granule from agitated materials. Featuring high efficient guanulated, beauty appearances of the guanules, automatic discharging, avoid the breakage of false discharging, and this machine is suitable for nullah-operation. It is suitable for the chick monosodium glutamate factory.

Production                    : 100 – 200 kg/h
Granulator Diameter    : 1.0 – 3 mm
Motor Power                 : 3 kw
Overall Dimension        : 700x540x1400 mm
Weight                            : 350 kg
Knife Size                       : 250 mm

Production                    : 150 – 350 kg/h
Granulator Diameter    : 1.0 – 3 mm
Motor Power                 : 4 kw
Overall Dimension        : 800x650x1400 mm
Weight                            : 400 kg
Knife Size                       : 300 mm

KZL Series High Speed Granulator

Main Application :
Widely used in pharmaceutical, chemical and foodstuff industries with good effect, KZL serise high speed granulator has rationally designed sieve and link and can crush a block of fragile material, besides, it can crush and filtrate solid particles and grind large block with special sieve and friction sieve and link in accordance with principle of centrifugal force, and it can substitute for swing granulator.

Production              : 50 – 100 kg/h
Spring Length         : 185 mm
Diameter of Filter   : Ø 1 – 8 mm
Motor Power           : 0.55 kw
Speed                       : 1500 – 3000 r/min
Overall Dimension  : 650x450x1000 mm
Weight                      : 48 kg

Production              : 100 – 200 kg/h
Spring Length         : 185 mm
Diameter of Filter   : Ø 1 – 8 mm
Motor Power           : 1.1 kw
Speed                       : 1000 – 1500 r/min
Overall Dimension  : 1000x8000x1200 mm
Weight                      : 150 kg

Production              : 150 – 300 kg/h
Spring Length         : 185 mm
Diameter of Filter   : Ø 1 – 8 mm
Motor Power           : 1.5 kw
Speed                       : 1000 – 1500 r/min
Overall Dimension  : 1060x850x1350 mm
Weight                      : 180 kg

Production              : 200 -400 kg/h
Spring Length         : 185 mm
Diameter of Filter   : Ø 1 – 8 mm
Motor Power           : 2.2 kw
Speed                       : 800 – 1000 r/min
Overall Dimension  : 1100x100x1500 mm
Weight                      : 200 kg

GHL Series High Speed Mixer Granulator

Main Application :
GHL high speed mixing granulator is a high efficiency equipment that can mix different powder materials and granulate granule in one procedure. It is widely used for pharmaceutical industry, foodstuff industry and chemical industry, etc.

Working Principle :
The powder material and adhesive are mixed fully at the bottom to become humid soft material, the nit is cut through high speed crusher and become uniform granules.

Features :

  • The machine adapts horizontal cylinder structure. Its structures is reasonable.
  • Use air filled seal shaft to drive. When washing, it can be changed to water;
  • Use fluidization to Granulate and the granule is like ball. lts flowability is good.
  • Compared with the traditional process, 25%) of adhesive can be reduced and the drying time can be shorted.
  • The time of mixing in dry is 2 minutes and the time of granulating is 1-4 minutes. Compared with the traditional process, 4 – 5 times of efficiency is raised.
  • In the same sealed container, dry mixing, humidity mixing and granulating can be finished, it is in conformity with the requirements of GMP.
  • The whole operation has strict safe and protective measures.
  • The mixing and cutting speed are controlled through frequency change, so the granules are more even.

Capacity           : 50 L
Output               : 15 kg/batch
Admix Speed    : 200/400 rpm
Admix Power    : 5.5 kw
Incise Speed     : 1500/3000 rpm
Incise Power     : 2.2 kw

Capacity           : 150 L
Output               : 50 kg/batch
Admix Speed    : 180/270 rpm
Admix Power    : 15 kw
Incise Speed     : 1500/3000 rpm
Incise Power     : 5.5 kw

Capacity           : 200 L
Output               : 80 kg/batch
Admix Speed    : 180/270 rpm
Admix Power    : 15 kw
Incise Speed     : 1500/3000 rpm
Incise Power     : 5.5 kw

Capacity           : 250 L
Output               : 100 kg/batch
Admix Speed    : 180/270 rpm
Admix Power    : 15 kw
Incise Speed     : 1500/3000 rpm
Incise Power     : 5.5 kw

Capacity           : 300 L
Output               : 130 kg/batch
Admix Speed    : 140/220 rpm
Admix Power    : 18.5 kw
Incise Speed     : 1500/3000 rpm
Incise Power     : 7.5 kw

Capacity           : 400 L
Output               : 200 kg/batch
Admix Speed    : 106/155 rpm
Admix Power    : 22 kw
Incise Speed     : 1500/3000 rpm
Incise Power     : 7.5 kw

GK Series Dry Granulator

Main Application :
As a new equipment that utilizes the crystallized water in the material to pelletize the powder into granulate, this machine features novel and reasonable structure, stable and reliable performance, easy maintenance and cleaning. Granulates made by the machine can be pressed into tablets or capsules, and it’s mainly used for granulation inpharmaceutical, chemical, foodstuff and other trades, esp. for granulation of materials not suitable for wet method.

Production               : 20 – 60 kg/h
Feeding Size            : 0.4 – 6 mm
Working Pressure   : 198 kn
Motor Power           : 7.15 kw
Overall Dimension  : 1380x850x2200 mm
Weight                      : 1600 kg

Production               : 60 – 200 kg/h
Feeding Size            : 0.4 – 6 mm
Working Pressure   : 294 kn
Motor Power           : 13.75 kw
Overall Dimension  : 1850x1100x2600 mm
Weight                      : 2000 kg

Production               : 80 – 300 kg/h
Feeding Size            : 0.4 – 6 mm
Working Pressure   : 294 kn
Motor Power           : 25 kw
Overall Dimension  : 2080x1240x2920 mm
Weight                      : 3000 kg
