LIQUID PACKING MACHINE

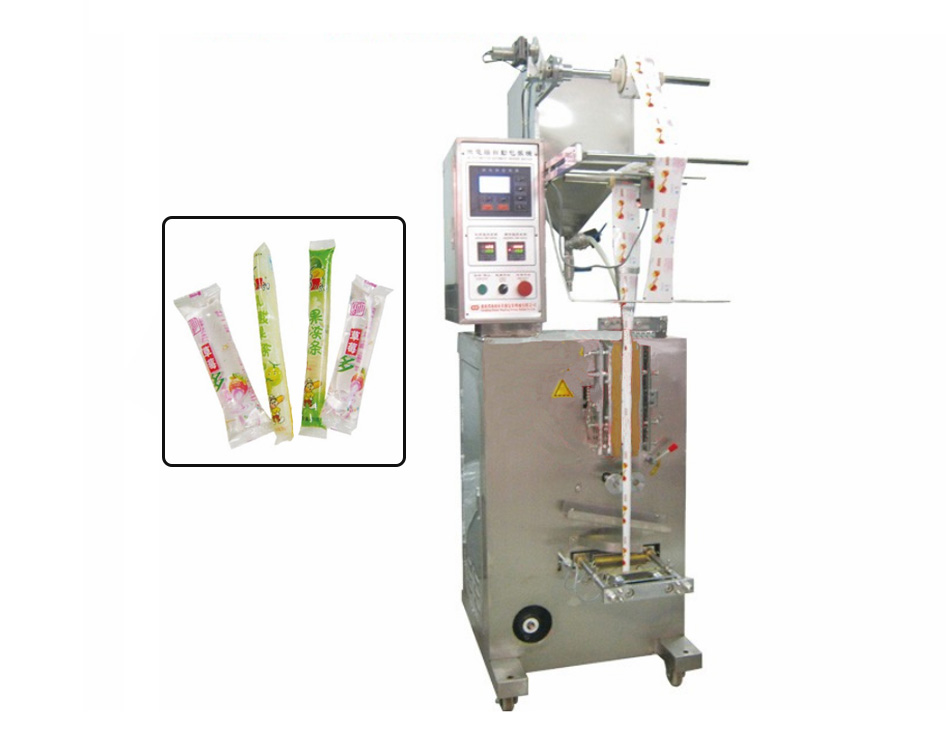

JX020 Fully Automatic Liquid Lolly Packing Machine (Back Seal)

Sealing Method     : Back Seal
Bag Size                  : (L : 50 – 300 mm) (W : 55 -120 mm)
Measuring Range  : 3 – 100 ml
Capacity                  : 40 – 80 bags/min
Total Power            : 1.2 KW
Machine Weight    : 280 kg
Machine Size         : 700x860x1750 mm

Usage

This machine is special for stick and bar packing, such as jelly, beverage, oil, yoghurt. It is one of multifunctional packing machines, which all the works involved bag making, measuring, filling, counting, sealing and cutting can automatically be done.

JX021 Fully Automatic Liquid Packing Machine

Sealing Method      : Four Side Seal
Bag Size                   : (L : 50 – 140 mm) (W : 60 – 260 mm)
Measuring Range   : 3 – 100 ml
Capacity                   : 40 – 80 bags/min
Total Power             : 1.2 KW
Machine Weight     : 280 kg
Machine Size          : 700x860x1750 mm

Usage

This machine is available for the packaging of different liquid and paste product, such as soup, sauce, shampoo, beverage, soy sauce and yoghurt, etc.

JX021-1 Fully Automatic Four-Lane Liquid Packing Machine

Packing Speed       : 120 – 160 bags/min
Measuring Range  : 2 – 10 ml
Specifications        : (L : 40 – 90 mm) (W : 380 – 480 mm)
Total Power            : 2.2 KW
Machine Weight     : 360 kg
Working Voltage    : 220 V, 50 Hz, 1 Phase
Machine Size         : 680x1050x1850 mm

Purpose

It is applicable for food, chemicals, pharmacy industries and suitable for liquid, grease (paste) liquid, oil, paste and gel products, etc.
